The 10 HP induction motor is an industrial drive device. It is mainly composed of a stator and a rotor. The stator is made of silicon steel sheets and embedded with three-phase windings to form a rotating magnetic field; the rotor adopts a cast aluminum cage structure to ensure smooth flow of current. When the rotating magnetic field of the stator cuts the stationary rotor conductor, an electromagnetic field is induced in the rotor conductor, thereby generating torque and driving the motor to rotate. The 10 HP induction motor can be widely used in industrial fields such as compressors and pumps.
Specifications
10 Hp Induction Motor
- Power Output: 10 HP
- Voltage: 380v or customized voltage
- Frequency: 50 Hz or 60HZ
- Phase: 3
- Poles: 2P/4P/6P/8P
Features
High Efficiency And Energy Saving
The 10 HP induction motor uses cutting-edge electromagnetic design to optimize the magnetic field, with an efficiency of 92%, which is 12% more energy-efficient than ordinary motors of the same power, and saves about 1,200 kWh of electricity in 1,000 hours of operation.
Durable
The core of the 10 HP induction motor is made of high-purity silicon steel sheets and equipped with high-quality ceramic bearings, with a life of more than 120,000 hours under rated conditions.
Accurate Speed Regulation
The 10 HP induction motor has a precise variable frequency speed regulation function, with a speed regulation range of 1:100 and a speed regulation accuracy of ±0.5%.
Low Noise Operation
The 10 HP induction motor has a double-layer soundproof casing, an outer aluminum alloy and an inner sound-absorbing material, and a dynamic balancing process to control the rotor imbalance, with a full-load noise level of less than 65 decibels.
1. Industrial Field
10 HP induction motor is mainly used to drive conveyor belts, providing stable power for conveyor belts to ensure continuous and smooth transportation of materials on the production line.
2. Agricultural Field

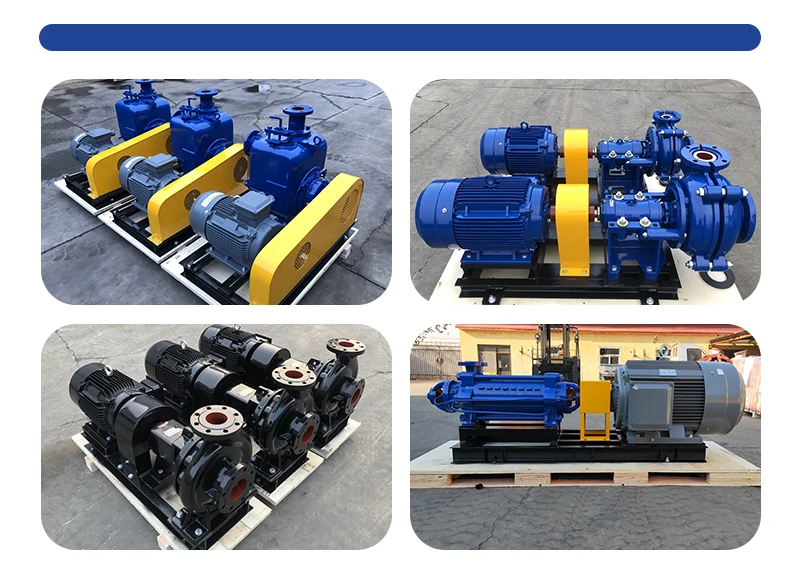

10 HP induction motor is mainly used to drive irrigation water pumps. It drives the water pumps through its own power to extract water from the water source and transport it to the farmland.
3. Construction Field
10 HP induction motor is mainly used for small construction equipment, such as small concrete mixers. Its function is to provide rotational power for the mixer so that the concrete raw materials can be fully mixed.
Conditions Of Use
[Power supply condition] Voltage fluctuation within ±5% (short-term allowable fluctuation within ±10%); Frequency fluctuation ±2% (short-term fluctuation ±5%). The motor and frequency fluctuate within ±5% at the same time, and the frequency fluctuation does not exceed ±2%.
[Use place] shall not be used in the environment containing flammable gases, chemical corrosive gases or other harmful gases (except for special environment motor).
[Ambient temperature] The ambient temperature varies with the season, but the maximum is not more than +40℃, the minimum is not less than -15℃ (except special ring temperature motor)
【Altitude】 Not more than 1000m (except high altitude motor)
[Transmission mode] Elastic coupling, spur gear and pulley drive are allowed
[Rotation direction] Clockwise (default), counterclockwise (order required)
[Starting method] Direct starting, Y/△ starting, step-down starting, frequency conversion starting, etc.
